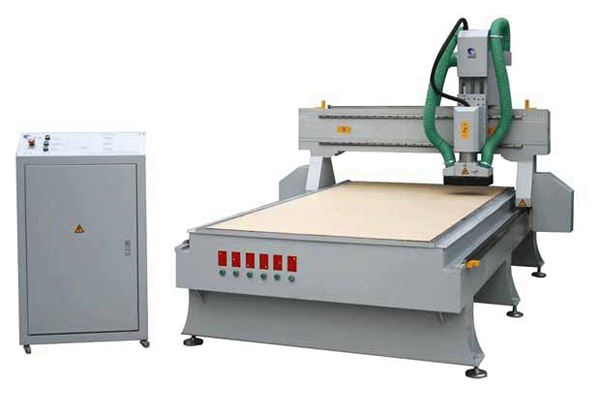

Features:
1. Adopt imported linear square rails, double four ball slider, large loading capacity, smooth operation, high precision, long life. Imported high precision ball screw, carving precision.
2. Optional spindle is the high speed water-cooled motors with imported Japan NSK bearings. Spindle power large, performance stable.
3. Adopting advanced DSP system, operated with the handle, convenient operation, humanization design.
4. Unique intelligent budget principle fully develops the potential of the motor and achieve high-speed processing, curves and linear synchronous, curves more perfect.
5. Well compatibility: Compatible CAD/CAM designing software e.g. Type3/Artcam/Castmate /Wentai etc.
6. Vacuum table with 6 vacuum zones, which can absorb different size materials. No oil vacuum pump, high suction, more convenient, stable capability. Adopt high speed stepper motor and drivers, and two motors for Y axis. Max speed is 25m/min.
Scope:
1. Can be used in the furniture industry, furniture decoration industry, wood decoration industry, Musical Instrument Manufacturing industry, wooden handicrafts industry, furniture decoration industry.
2. Suitable for large area flat plate engraving, wood furniture, sculpture, mural art of wood carving, wood carving, engraving MDF Paint doors, cupboard doors carved.
3. It is the replacement product of furniture industry.
Technical parameters:
X / Y axis travel: 1280mm * 2500mm
Z axis travel: 150mm
Maximum speed: 26.0 (m / min)
Resolution: 0.15mm
Processor: PCI \ DSP (32M; 128M)
Transmission: Rack and pinion
Drive system: AC servo
Software operating environment: Windows2000/XP/98
Carving instructions: G-code/HP-GL
Power consumption (without spindle): 1500w
Spindle: 3000W (brushless water cooled)
Spindle speed: 0-24000 (r / min)
Tool diameter: 3.175/4/6/8/10/12.7
Power: 220V50HZ/380V60HZ
