Features: ◆ Adopt imported linear square rails, double four slider, loading capacity, smooth operation, high precision, long life, machining precision. ◆ The machine adopts steel seamless welding, it really rigid deformation, table back lining plate, strength and good rigidity, machine loading capacity of up to one ton or more. ◆ Constant power spindle motor, great cutting intensity, high efficiency ◆ Software compatibility is good, compatible Typ3/Artcam/Castmate / Wentai and other CAD / CAM design software ◆ Two-way tool cooling system, effectively improve tool life
Scope: Granite, marble, bluestone, sandstone, glass, stone carving, etc. Granite and other hard stone carvings can be layered to 3mm Marble, bluestone, etc. can be a sculpture to 3mm
Suitable for marble, granite, artificial stone, tombstones, stone, tile, glass and other materials
Performance parameters: Model: 9015,1218,1224 1, travel: X travel: 900mm, 1200mm, 1200mm Y travel: 1500mm, 1800mm, 2400mm Z travel: 250mm, 250mm, 250mm 2, Platform Size: 1100mm × 2000mm, 1400mm × 2300mm, 1400mm × 2900mm 3, accuracy: Precision: 0.05mm Repeat positioning accuracy: 0.02mm, 0.05mm, 0.05mm 4, structure: Mesa structure: Aluminum X, Y, Z structure: X, Y, Z screw 5, Machine self consumption power: 2KW 6, speed: Blank lines maximum speed: 8000mm/min Maximum operating speed: 6000mm/min 7, Spindle: Spindle Power consumption: 5.5KW Spindle speed: 0-18000rpm 8, operation mode: Stepper 9, working voltage: AC380V/50HZ 10, Run command: G code 11, operating system: PCI card control

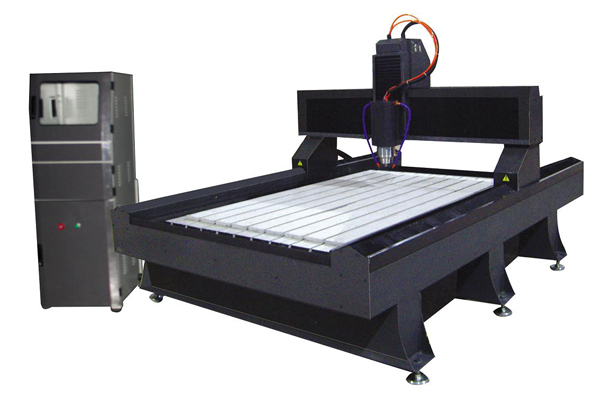

MD-1218Heavy Duty Stone CNC Routercan engraving the following samples.
