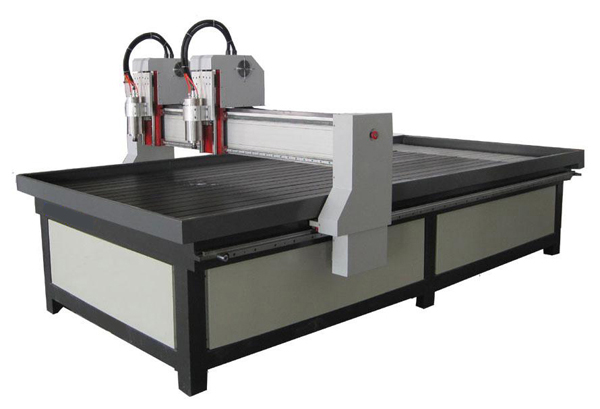

Features:
1. Adopt imported linear square rails, double four ball slider, large loading capacity, smooth operation, high precision, long life. Imported high precision ball screw, carving precision.
2. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment, good rigidity and heavy loading.
3. Constant power spindle motor, cutting intensity, high efficiency.
4. Well compatibility: Compatible CAD/CAM designing software e.g. Type3/Artcam/Castmate /Wentai etc.
5. Two-way tool cooling system, effectively improve tool life.
Scope:
Granite, marble, bluestone, sandstone and other stone engraving.
Granite and other hard stone engraving can be layered to 5mm.
Marble, bluestone, etc. can be a sculpture to 5mm.
Performance parameters:
Model: 9015,1218,1325
1, travel: X travel: 900mm,1200mm, 1300mm
Y travel: 1500mm, 1800mm, 2500mm
Z travel: 260mm, 260mm, 260mm
2, Platform Size: 1100mmx2000mm, 1400mmx2300mm, 1600mmx3100mm
3, Precision: processing accuracy: 0.05mm
Repeat positioning accuracy: 0.02mm 0.05mm 0.05mm
4, Structure: Aluminum
X, Y, Z Structure: XY rack, Z screw
5, Machine self consumption power: 2KW
6, Speed: Max empty line speed: 8800mm/min
Maximum operating speed: 6000mm/min
7, spindle: spindle power consumption 4.5Kw
Spindle speed: 0-24000RPM
8, Operating modes: Stepper
9, Operating voltage: AC380V/50Hz
10, Run command: G code G code
11 ,Operating system: PCI card control
