Features:

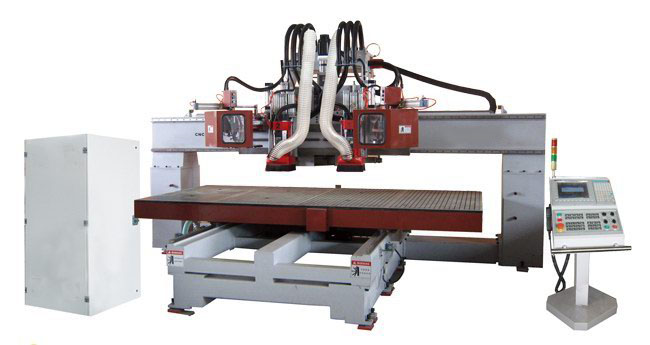

Single-tops, double spindle, automatic tool changing knives library. Heavy structural design, horizontal, table, bed mobility.
Two head can simultaneously process can also be used alone, more than triple the efficiency of the single head.
Two head can always switch, such as the first head in the engraving and milling complex graphics, you can always switch to complete the rest of the second head job, significant savings in tool change time and increase the randomness of machining.
Tool can also use two knives (knives, knife-capacity database 16) for processing, processing of complex products for diversity.
Adopt international top accessories, such as Germany's vacuum system and drive system, servo drive system in Japan, imported Italian HSD spindle power.
Intelligent processing cross-border protection, the design documents to prevent excessive working hours due to mechanical impact.
Diversified control processing speed can be controlled separately, air walking speed, knife speed, greatly improved the quality of processed products and processing efficiency.
The machine uses a wide range: can be used for carving, engraving and milling, cutting, drilling, lateral drilling, milling, sawing and other side, is a heavy-duty multi-functional and efficient processing center.
Performance:
Stroke range: X stroke: 3100mm, Y stroke: 1600mm, Z stroke: 240mm
Platform Size: 3100 × 1600mm
Accuracy: processing accuracy ± 0.03mm, repeat positioning accuracy: ± 0.02mm
structure: mesa structure: vacuum, X, Y, Z Structure: Rack
Speed: Max empty line speed: 45000mm/min, the maximum operating speed: 24000mm/min
Spindle: Spindle power: 8.0KW, spindle speed: 0-24000rpm
Run: Run mode: Servo, file format: G code, HPGL, NC, CAD
Operating voltage: AC380V/50HZ
Operating System: Taiwan's SYNTEC system
The number of magazines: 16
