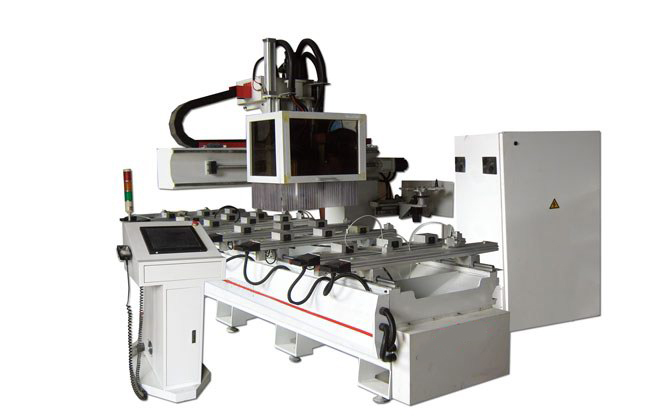

Features:
The machine is suitable for variety of complex processing or diverse processing, wide range of uses: Laser marking, drilling, cutting, milling Voltage, Leading Edge, etc., mainly used for cutting and engraving and milling.
models in this paragraph of the machinery, electrical components are top international products. Such as Germany's vacuum system and drive system, servo drive system in Japan, Italy imported spindle.
Bamboo hat style automatic tool changing system, tool storage capacity of 8, tool change time of just 8 seconds, processing speeds of up to 25 m / min.
Dual motive of bilateral transfer station, is a heavy cutting-type processing machines.
Applicable industry:
Panel furniture industry, wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, mahjong table, furniture, office furniture, wooden sound box, wooden furniture, kitchenware and other processing. Also applies to non-metallic mold, automotive mold processing industry polystyrene.
Application materials:
Processing material: MDF, wood, glass, PVC board, color board, copper, aluminum, sandwich board.
Performance:
Stroke range: X stroke: 1220mm, Y stroke: 3400mm, Z stroke: 350mm
Platform Size: 1400 × 3400mm
Accuracy: processing accuracy: ± 0.05mm, repeat positioning accuracy: ± 0.03mm
Structure: table structure: horizontal and vertical adjustable adsorption block; X, Y, Z structure: X, Y screw, Z rack
Speed: Max empty line speed: 32000mm/min; maximum operating speed: 15000mm/min
Spindle: Spindle power: HSD8.0KW; spindle speed: 100-10000rpm
Run: Run mode: Servo; G-code file format
Operating voltage: AC380V/50HZ
Operating Systems: Italy - Waseem
Weight: 3000KG
