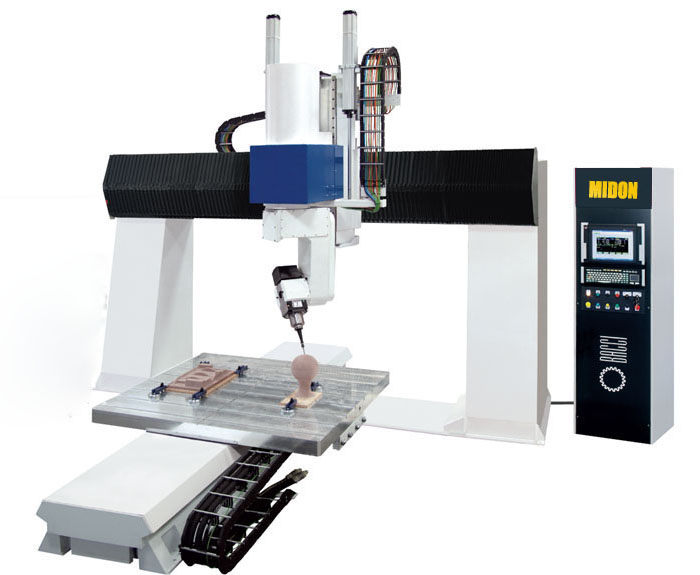

Features: 1.China's first independently developed dual-swivel rotary high-speed milling head, mainly using imported components, with stable performance characteristics; 2.Ultra-dimensional control systems which cooperation with well-known developed automatic control manufacturers , easy to learn and flexible operation, has an absolute advantage in the service and have unlimited headroom; 3.With 8 knives disc magazine; and can achieve automatic tool function; machine table with vacuum suction function; precision imported guide rail and screw ensures processing accuracy equipment; have time quantitative automatic lubrication. 4. Products suitable for processing of wood, light alloys and various composite mold surfaces and complex material, widely used in transportation facilities manufacturing, mold processing, wood processing, furniture, musical instruments industry. Machine parameters and appearance are subject to change, in order to prevail in kind manufacturers:
Performance Parameters stroke: X stroke 1220mm Y stroke 2440mm Z stroke 600mm C-axis rotation angle: ± 225 ° A shaft rotation angle: ± 100 ° X Maximum speed: 26m/min Y Maximum speed: 60m/min Z Maximum speed: 15m/min C.A shaft Maximum speed: 70 ° / min Spindle power: 7.4KW Maximum spindle speed: 18000rpm Positioning accuracy: ± 0.05mm System Resolution: ± 0.001mm Vacuum adsorption capacity: 140m ³ / h Automatic tool change number: 8 Overall dimensions: 5500mm * 3500 * 4500mm Weight: about 10000kg
MD-1325Five axis linkage machining centercan engraving the following samples.
