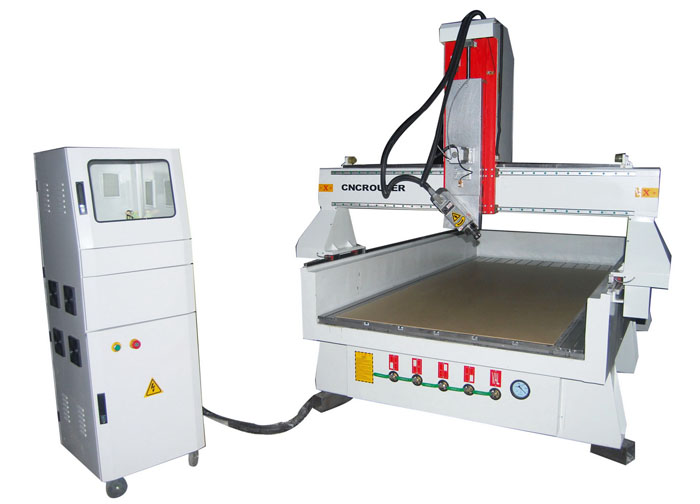

Product Performance
1, Machine overall steel weld by vibration aging treatment, no deformation, good rigidity.
2, Y-axis transmission mode stepper way drive to ensure smooth movement.
3, Adopt high-precision rack and pinion drive, high speed, high accuracy.
4, Using imported circular line rail to ensure the accuracy of the machine can withstand large loads.
5, High-speed water-cooled brushless frequency spindle motor, big tough, strong cutting, low noise, high frequency, long life and other characteristics, can work long hours.
6, The products can be carved lettering painting, engraving, parquet on solid wood, fiberboard, plywood, MDF, plywood and other materials to meet the needs of personalized furniture, decoration, art and design tooling.
Scope:
Can be used for three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, computer tables, process window processing, glass, PVC plate, stone plates, metal plates, synthetic sheet, acrylic sheet, etc. and processing the material.
Technical parameters:
Engraving area: 1300 × 2500mm
Z axis travel: 200mm
Precision: ± 0.05mm
Idle speed: 15m/min
Working speed: 8 m / min
Spindle power: 3.0KW water-cooled
Spindle speed :6000-24000rpm / min
Run mode: Stepper (Optional servo)
Mesa structure: Aluminum
Engraving Software: WENTAI, Type3, Artcam, MasterCAM
Run command: G code
Operating voltage: 220V/380V50/60HZ
Operating system: Weihong or DSP handle
