Equipment Introduction:

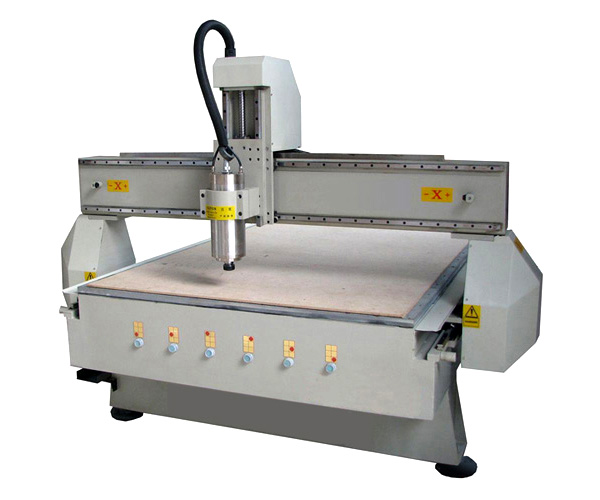

Midon CNC engraving and milling machine, whole optimized design, Computer simulation analysis make it have more preferably structure, more rigid, better cutting performance advantages.
The whole structure with high strength castings after several were tempering treatment,good structural stability.
Using precision CNC machine special bearings, Taiwan super precision ball linear guides and ball screws, with Japan's Yaskawa high resolution digital AC servo and new generation high-speed high-precision CNC system, so that the whole performance in terms of mold and other metal cutting excellence.
The machine uses high rigidity structure and selection of high sensibility spindle, in addition to making high-speed milling aspects excellence, but also has the function of high-speed carving, to overcome the common CNC milling can not be out of the limitations, and the processing of good quality,it is the best choice for molds and machining to improve productivity.
Technical Parameters:
Machine Model: MD-4040, MD-6060, MD-7080
Positioning accuracy: ± 0.01mm/300mm
Repeat positioning accuracy: ± 0.01mm
Axis working stroke: 400 * 400 * 140mm, 600 * 600 * 260mm, 1000 * 800 * 350mm
Worktable size: 500 * 450mm, 600 * 500mm, 790 * 900mm
Z-space height: 280mm, 450mm, 500mm
Maximum working load: 300kg, 500kg, 1000kg
Bed body mass: 2T, 3T, 4.3T
Power supply and Engraving processing maximum power consumption: single phase 220v/3kw, three phase 380v / single phase 220v/7kw, three phase 380v / single phase 220v/20kw
Spindle motor input power: 1.5/2.2/3kw, 4/5.5kw, 8KW (optional mechanical spindle)
Maximum spindle speed: 24000rpm, 24000rpm, 15000rpm
Movement and Engraving maximum speed: 8m/min ,8-10m / min ,8-10m / min
CNC system: Taiwan SYNTEC speed engraving system (optional LNC system)
Tool chuck: Er16 (Φ3.17-Φ12), Er (Φ3.17-Φ20), Er (Φ3.17-Φ20)
Drive motor: AC servo motor
Overall dimensions: 1400 * 1200 * 1800mm, 1500 * 1300 * 2200mm, 2500 * 1800 * 2500mm
