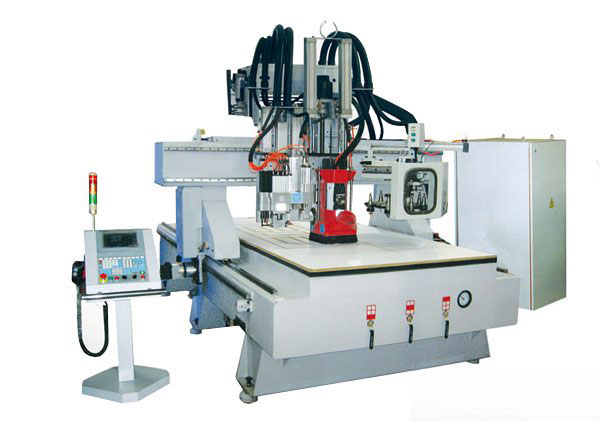

Features:
The machine is suitable for variety of complex processing or diverse processing, wide range of uses: Laser marking, drilling, cutting, milling Voltage, Leading Edge, etc., mainly used for cutting and engraving and milling.
This paragraph of the machinery, machinery and electrical components are top international products. Such as Germany's vacuum system and drive system, servo drive system in Japan, Italy imported spindle.
Bamboo hat style automatic tool changing system, tool storage capacity of 8, tool change time of just 8 seconds, processing speeds of up to 25 m / min.
Dual motive of bilateral transfer station, is a heavy cutting-type processing machines.
Vacuum adsorption worktable. The whole process without further cutting board, cutting on the line can be omitted making the mold.
Applicable industries:
Furniture industry, solid wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, mahjong table, furniture, office furniture, wooden sound box, wooden furniture, kitchenware and other processing. Can also be applied to non-metallic mold, automotive mold industry styrofoam processing.
Performance:
Stroke: X Stroke: 1200mm within 2000mm
Y Stroke: 2440mm within 5000mm
Z Stroke: 380mm within 700mm
Platform Size: 1220x2440mm
Accuracy: processing accuracy: 0.02mm
Repeat positioning accuracy: 0.05mm
Structure: table structure: vacuum adsorption (Bakelite)
X, Y, Z structure: Z screw, X, Y rack
Speed: Max empty line speed: 50000mm/min
Maximum operating speed: 25000mm/min
Spindle: Spindle power: 8.0KW
Spindle speed: 0-24000r/min
Run mode: Servo
Operating voltage: AC380V/50Hz AC380V/60Hz
Run the command: G code
Operating System: SYNTEC system
Weight: 2000kg
